High-Density Storage — Long Materials & Pipes
CH Telescopic Cantilever Rack
Melbourne & South-East Victoria
Unfolding Flexibility. Unlimited Storage.
The expert in high-density storage for long materials, plates, pipes, and irregularly shaped goods. Telescopic arm extension adjustable from 0.6 to 1 metre — dynamic space allocation without forklift dependency. Based in Dandenong South, supply & install across Melbourne and Victoria.
Easy Access
Retrieve and store items in any order, unrestricted by height or sequence — no forklift dependency
High Space Utilisation
Telescopic arms reduce aisle width to under 1.5m — saving up to 40% of warehouse floor space
Exceptional Load Capacity
Up to 2,000kg per level, 6,000–8,000kg at the base — engineered for heavy industrial loads
Optional Control Modes
Hand-crank or electric control — choose the mode that fits your operation and handling equipment
Easy Access
Retrieve and store items in any order, unrestricted by height or sequence — no forklift dependency
High Space Utilisation
Telescopic arms reduce aisle width to under 1.5m — saving up to 40% of warehouse floor space
Exceptional Load Capacity
Up to 2,000kg per level, 6,000–8,000kg at the base — engineered for heavy industrial loads
Optional Control Modes
Hand-crank or electric control — choose the mode that fits your operation and handling equipment
Empower
Growth

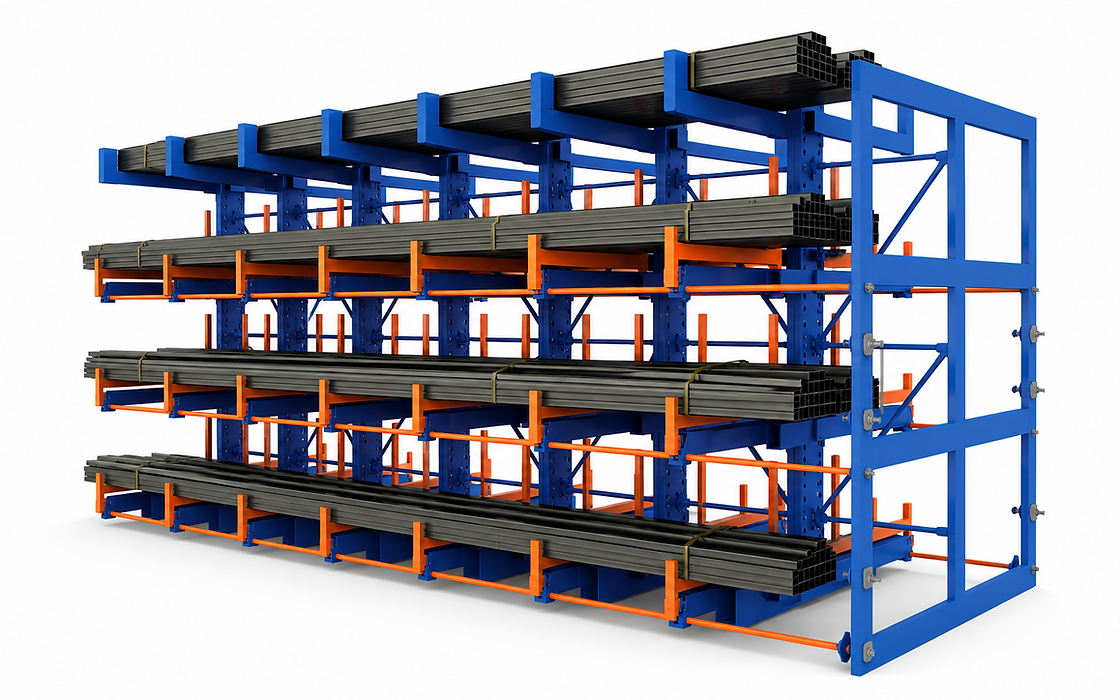

CH TELESCOPIC CANTILEVER RACK
The CH Telescopic Cantilever Rack is a specially designed high-density storage system renowned for its flexibility, space efficiency, and outstanding load-bearing performance. Unlike traditional cantilever racking, the telescopic arm structure allows its extension length to be adjusted from 0.6 to 1 metre based on actual storage needs — enabling dynamic space allocation and dramatically improved warehouse utilisation.
With exceptional load capacity, each level supports up to 2,000kg, while the base can withstand 6,000–8,000kg — making it one of the most capable long-material storage systems available for industrial warehousing in Australia.
Designed for ease of operation, the CH Telescopic Cantilever Rack offers both hand-crank and electric control modes, making loading and unloading effortless via overhead crane. Widely used in machinery manufacturing, building material supermarkets, logistics warehousing, ports, and e-commerce warehouses — it reliably stores long materials, plates, pipes, and irregularly shaped goods that cannot be accommodated on standard racking systems.
40%
Overhead crane operation narrows aisle width, saving up to 40% of warehouse space.
80%
Categorized storage enables easy access, improving warehouse management efficiency bu 80%
10%
Protects pipes and profiles from moisture, corrosion, and deformation, reducing material loss by 10%.
KEY ADVANTAGES
Telescopic vs Traditional Cantilever Racking
CH Telescopic Cantilever Rack
Aisle < 1.5m (Recommended)
Overhead crane access to any level in any sequence, completely free from height or operational order constraints. Arms retract telescopically — maximum density, minimum footprint.
-
Access any level in any order — no sequence restrictions
-
Aisle width under 1.5m — saves up to 40% floor space
-
Hand-crank or electric control modes available
-
Up to 2,000kg per level load capacity
-
Protects goods from moisture, corrosion, deformation
Traditional Cantilever Racking
Aisle < 3.5m
Forklift operation required — restricts access to a fixed sequence. Retrieval must start from the top down; storage must begin from the bottom up. Wide aisles reduce usable floor space.
-
Forklift dependency — requires 3.5m+ aisle clearance
-
Fixed retrieval sequence — top-down only
-
Fixed storage sequence — bottom-up only
-
Greater floor space consumption per bay
Aisle < 1.5m (Recommended)
Overhead crane access to any level in any sequence, completely free from height or operational order constraints. Arms retract telescopically — maximum density, minimum footprint.
-
Access any level in any order — no sequence restrictions
-
Aisle width under 1.5m — saves up to 40% floor space
-
Hand-crank or electric control modes available
-
Up to 2,000kg per level load capacity
-
Protects goods from moisture, corrosion, deformation
Aisle < 1.5m (Recommended)
Overhead crane access to any level in any sequence, completely free from height or operational order constraints. Arms retract telescopically — maximum density, minimum footprint.
-
Access any level in any order — no sequence restrictions
-
Aisle width under 1.5m — saves up to 40% floor space
-
Hand-crank or electric control modes available
-
Up to 2,000kg per level load capacity
-
Protects goods from moisture, corrosion, deformation
PRODUCT SPECIFICATION
Technical specifications
Specification | Description |
|---|---|
Arm extension range | 0.6m – 1.0m (adjustable based on actual storage needs) |
Load capacity per level | Up to 2,000kg |
Base load capacity | 6,000kg – 8,000kg |
Control modes | Hand-crank (manual) or electric control — optional |
Loading method | Overhead crane — no forklift required |
Aisle requirement | Under 1.5m (vs 3.5m+ for traditional cantilever) |
Access sequence | Any level, any order — no height or sequence restrictions |
Suitable goods | Long materials, plates, pipes, steel profiles, irregularly shaped goods |
Industries | Machinery manufacturing, building materials, logistics, ports, e-commerce |
Supply & install | Melbourne, Victoria & Australia-wide — based in Dandenong South |
Who uses the telescopic cantilever rack?
The CH Telescopic Cantilever Rack is the preferred high-density long material storage solution for operations that need overhead crane access, minimal aisle space, and flexible arm extension — across Melbourne and Victoria.
List of using telescopic cantilever rack |
|---|
General long-material industrial storage |
Port & freight handling facilities |
Steel fabricators & metal suppliers |
Timber yards & lumber merchants |
Logistics & 3PL warehousing |
Building material supermarkets |
Pipe & plumbing wholesalers |
E-commerce warehouses |
Machinery manufacturing facilities
|
Telescopic cantilever rack — Melbourne supply & installation
Our warehouse is located at 10–16 Evolution Drive, Dandenong South VIC 3175 — giving us fast turnaround on telescopic cantilever rack supply and installation for businesses across Melbourne's industrial south-east. We work directly with machinery manufacturers, building material operators, steel fabricators, and logistics facilities to configure and install the right system for your overhead crane setup and floor plan.
Service areas — Melbourne south-east & metro
Same-week site measures available for businesses in:
Dandenong
Dandenong South
Keysborough
Carrum Downs
Cranbourne
Braeside
Springvale
Hallam
Clayton
Greater Melbourne
Victoria-wide
Frequently asked questions
Q What is a telescopic cantilever rack?
A telescopic cantilever rack is a specialised high-density storage system with horizontal arms that extend and retract telescopically. Unlike traditional cantilever racking, arms can be adjusted from 0.6 to 1 metre in length — enabling dynamic space allocation without moving stored goods. It's designed for overhead crane operation, requiring an aisle of under 1.5m versus the 3.5m+ needed for standard cantilever systems.
Q What goods can be stored on a telescopic cantilever rack?
The CH Telescopic Cantilever Rack is ideal for storing long materials, pipes, plates, steel profiles, and irregularly shaped goods that cannot be stored on standard pallet racking. It's widely used in machinery manufacturing, building material supermarkets, plumbing warehouses, logistics facilities, ports, and e-commerce operations.
Q How much weight can the telescopic cantilever rack hold?
Each level of the CH Telescopic Cantilever Rack supports up to 2,000kg, while the base can withstand 6,000–8,000kg. This makes it suitable for heavy industrial applications including steel beams, pipe bundles, and large plate materials. Load capacity should be confirmed with our team for your specific configuration.
